Features:
1.

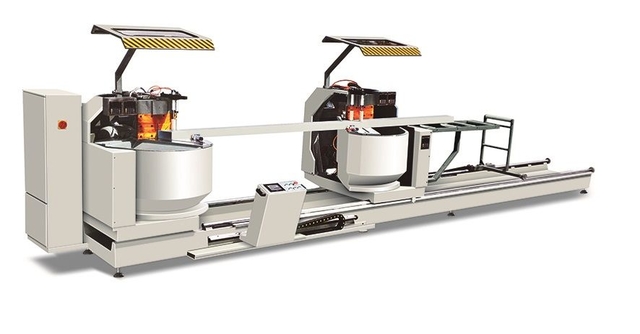

Automatic cutting Aluminum profile.
2. Mitsubishi controlling system driving machine moving and position automatically.
High precision and easy operation.
3. Right head is moving precisely under the drive of ball screw.
4. The feeding system adopts imported linear guide pair, with high accuracy and stability.
5. Auto 22.5°、45°and 90°cutting change
6. Imported linear guiding pair ensured steady processing accuracy.
7. Saw blade rotates smoothly due to high accuracy spindle.
8. Hydraulic feeding systems ensure precise and stable feeding.
9. Middle auto-induction profile supporter and following profile supporter make
the loading and clamping convenient.
10. Carbide saw blade is of accurate processing and high efficiency.
11. Two heads can work together or single, when together work, one time can cut off the required length and
Auto safety cover for safety operation
Parameter:
Power supply：3N~50Hz 380/220V or As Customer Specification
Cutting motor power：2×2.2kw
Cutting motor rotary speed：2800r/min
Operation air pressure：0.5～0.8MPa
Air consumption：60L/min
Blade specification：ø500×ø30×4.4×Z120
Cutting speed：stepless speed regulation0～3m/min
Max. cutting length：4200 mm
Min. cutting length：450 mm
Cutting width：max 135mm
Cutting height：900: max 300mm 450: max 200mm
Cutting angle: 90°、45°、67.5°（spare）
Repeat locating length tolerance：±0.2mm
Cutting profile surface plane：≤0.10mm
Cutting angle tolerance：±5′
Cutting profile surface roughness：Ra12.5µm
Contour dimension：5560 mm×1750mm×1950mm
Weight：2000g
